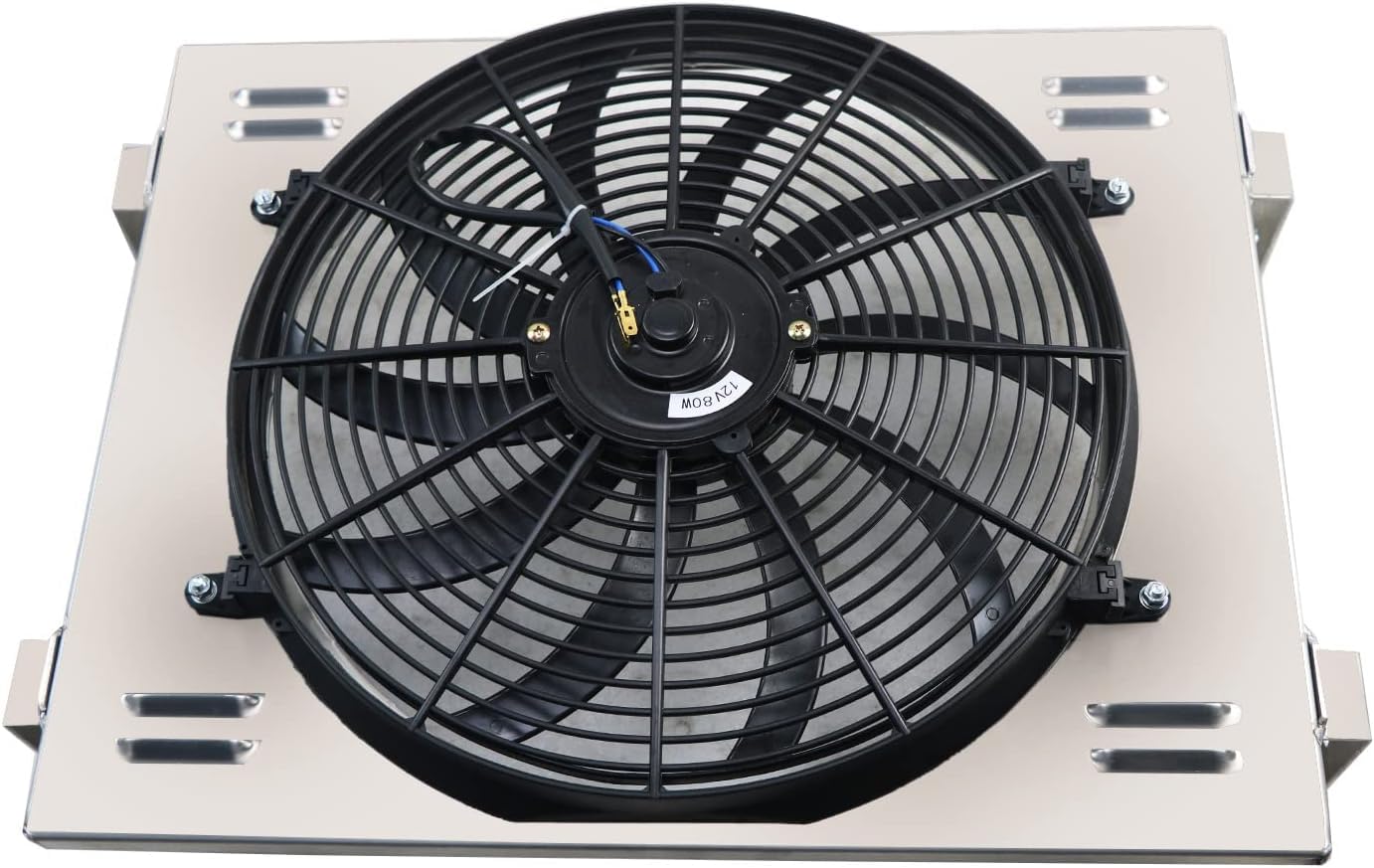

Aluminum Radiator Shroud Electric Fan For 1955 1956 1957 Chevy Bel Air BelAir Nomad V8 Engine
Product details
| Management number | 215229407 | Release Date | 2026/04/12 | List Price | $47.60 | Model Number | 215229407 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This Shroud Fan Compatible with: For Chevy Bel Air/Nomad/Del Ray V8 Engine 1955 1956 1957 Please Notice To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part Fan Details: Diameter(inch): 16 (Blade to Blade) Voltage: DC 12 Volts Wattage: 120W Number of Blades: 10 S-Type blades Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10% Amp Draw: 10amp Fan Thickness(inch): 3.27 S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect Powerful 120 watt motor will keep your engine cool Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This set up will run Fans & pull air in through radiator
- Shroud Fan Overall Size(inch): 24 x 17.13 x 3.74 / Fan Diameter (inch): 16
- Maximum Fan CFM: 3,000 cfm / Maximum Fan RPM: 2,250 rpm
- High Performance Racing Design, Improves Cooling by 30%+ Temp
- Light Weight Direct Bolt-On OEM Fitment or Replacement
- Shroud fan provides protection and extra heat heat dissipation for the radiator
| UPC | 792138965336 |
|---|---|
| Voltage | 12 Volts (DC) |
| Wattage | 120 watts |
| Brand Name | COOLINGBEST |
| Item Weight | 9.9 Pounds |
| Manufacturer | CoolingSun |
| Cooling Method | forced air |
| Item Type Name | Aluminum Radiator Shroud Electric Fan |
| Air Flow Capacity | 3000 Cubic Feet Per Minute |
| Included Components | Aluminum Radiator Shroud Electric Fan*1 |
| Power Connector Type | 4-Pin |
| Warranty Description | No |
| Maximum Rotational Speed | 2000 RPM |
| Item Dimensions L x W x H | 24"L x 16"W x 3.74"H |
